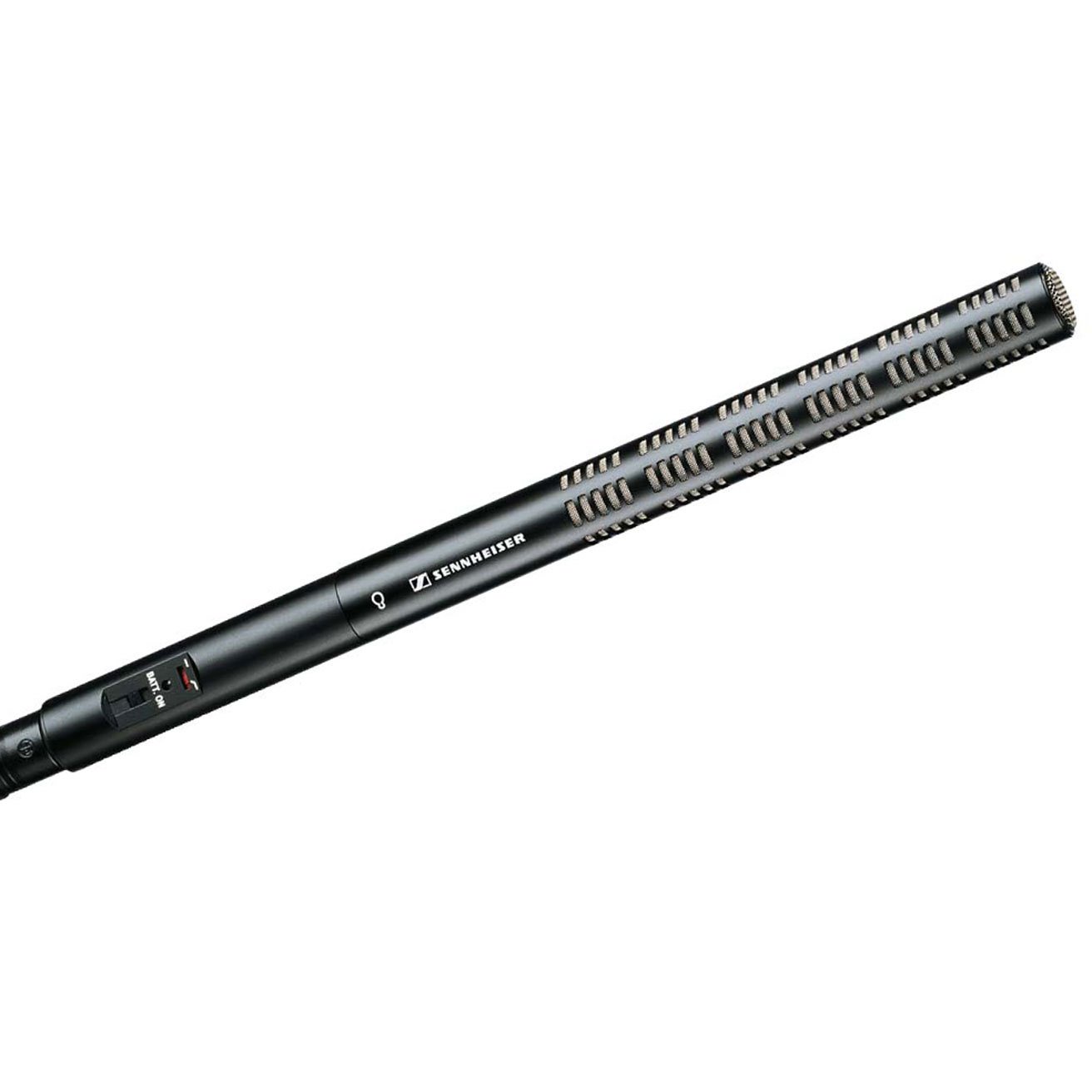

Sennheiser ME 66/K6 Shotgun
Super-cardioid/lobar microphone head suitable for K6 and K6P powering modules. For reporting, film, and broadcast location applications, as well as for picking up quiet signals in noisy or acoustically live environments.
Overview
The ME 66 is a shotgun microphone head designed for use with the K6 and K6P powering modules. It is especially suitable for reporting, film and broadcast location applications and for picking up quiet signals in noisy or acoustically live environments as it discriminates against sound not emanating from the main pick-up direction. Matt black, anodised, scratch-resistant finish.
Features
- Super-cardioid/lobar pick-up pattern
- Highly directional
- Low inherent self-noise
- High sensitivity
- Wide frequency response
Technical Data
- Dimensions- Ø 22,5 x 221 mm
- Frequency response (Microphone)40 – 20000 Hz +- 2,5 dB
- Sensitivity in free field, no load (1kHz)- 50 mV/Pa +- 2,5 dB
- Nominal impedance- 200 Ω (K6)
- Min. terminating impedance- 1000 Ω (K6)
- Equivalent noise level – 10 dB
- Equivalent noise level weighted as per CCIR 468-3- 21 dB
- Maximum sound pressure level (passive)
